Style: |

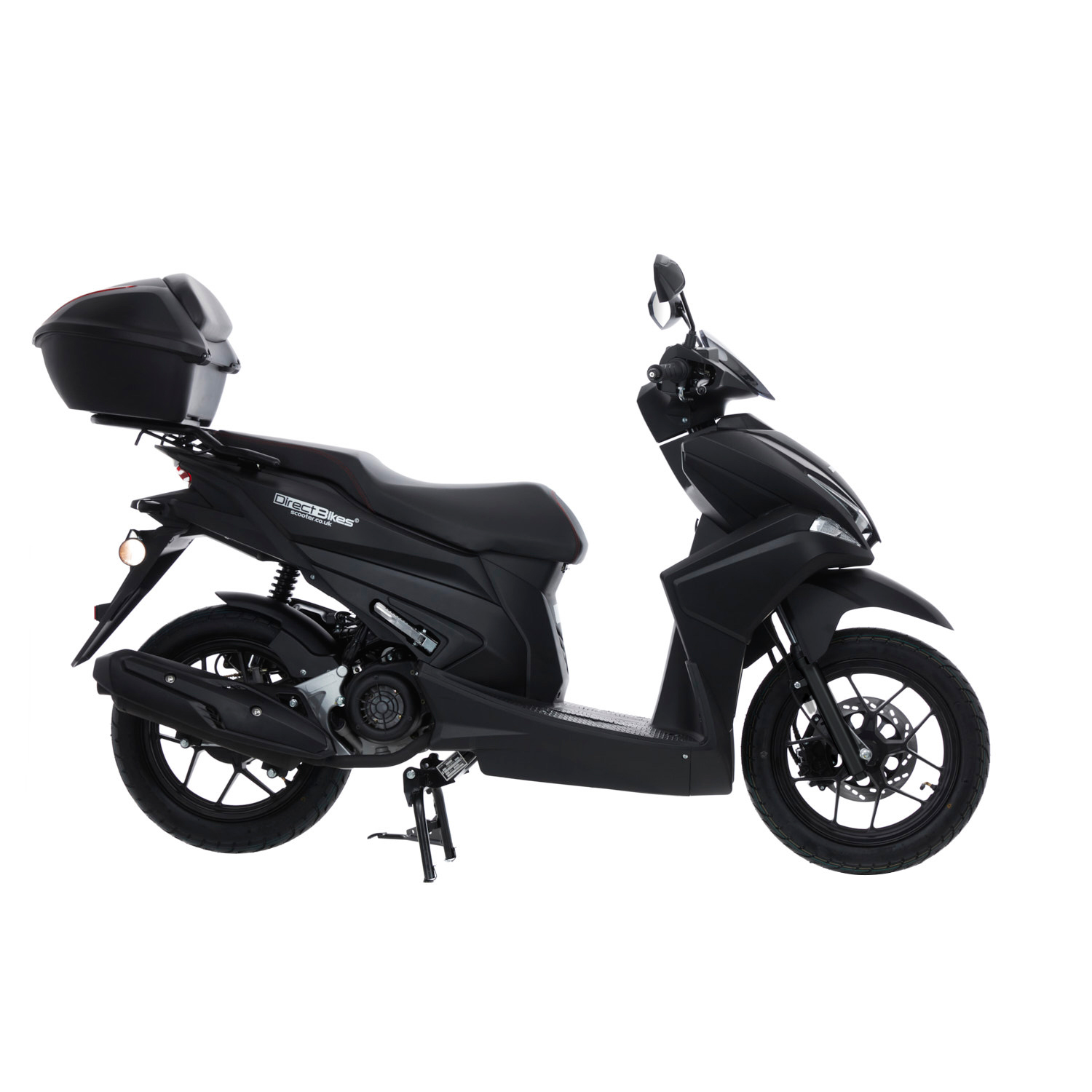

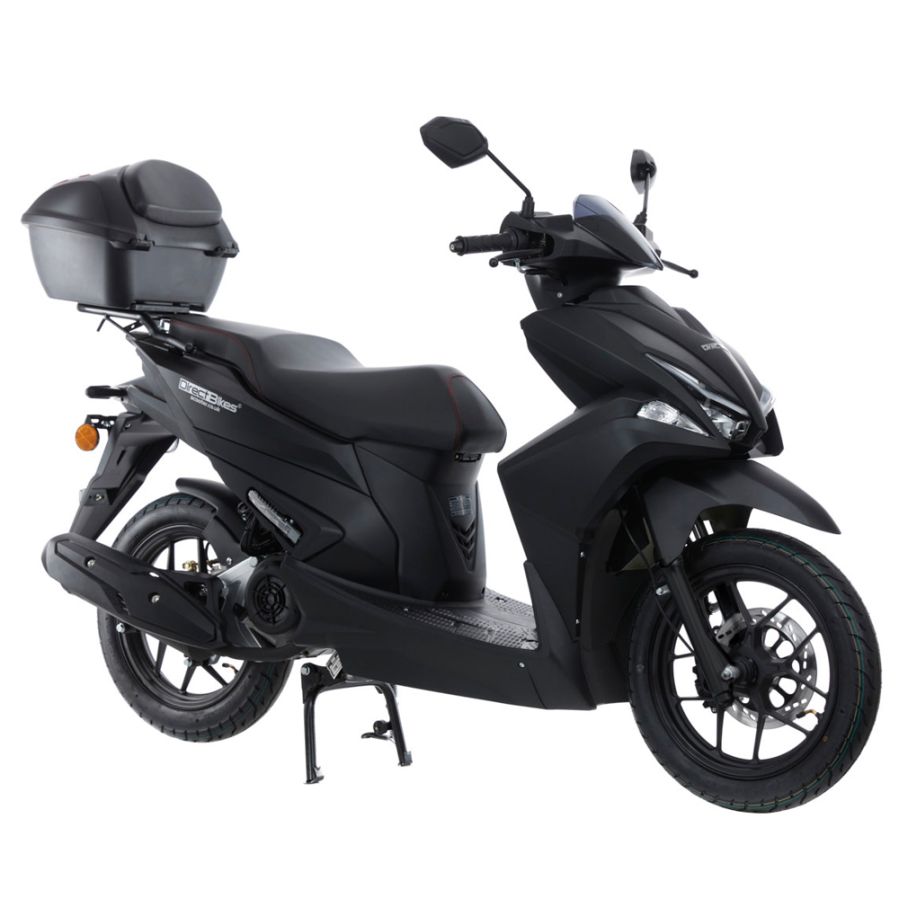

125cc Cheetah Scooter |
Model: |
Direct Bikes |
Overall Length(mm) |
1985mm |
Overall Width(mm): |
680mm |
Overall Height(mm): |
1195mm |
Seat Height(mm): |
715mm |
WheelBase(mm): |
1395mm |
Ground Clearance(mm): |
140mm |
Dry Weight(kg) |
120kgs |
Max. Load Mass(kg): |
120kgs |
Max. Speed(mph): |
60mph |
Tyre: |
Front:130/60-13
Rear:130/60-13 |
Driving Mode: |
C.V.T |
Brake Mode: |
Front: DISC
Rear: DISC |
Brake Operation Mode: |
Front: By Hand
Rear: By Hand |
Engine: |
DB152QMI |
Engine Type: |
Single Cylinder Four Stroke |
Cylinder Type: |
Horizontal |
Bore X Stroke(mm): |
Dia.52.4 X 57.8mm |
Piston Displacement: |
124.6cc |
Compression Ratio: |
9.5:1 |
Max. Torque(N.M/rpm): |
8.9/6000N.M/rpm |
Lubrication: |
Compress & Splash Combined Type |
Max. Output Power(kw/rpm): |
5.7/7000(kw/rpm) |
Ignition: |
C.D.I |
Started System: |
Electric Starter/Kick Starter |
Engine Cooling: |
Forced Air Cooling |
Fuel Capacity: |
8L |
Transmission: |
Stageless Transmission |
Clutch: |
Dry Multi-Disc Type |
Battery: |
12V-7Ah |
